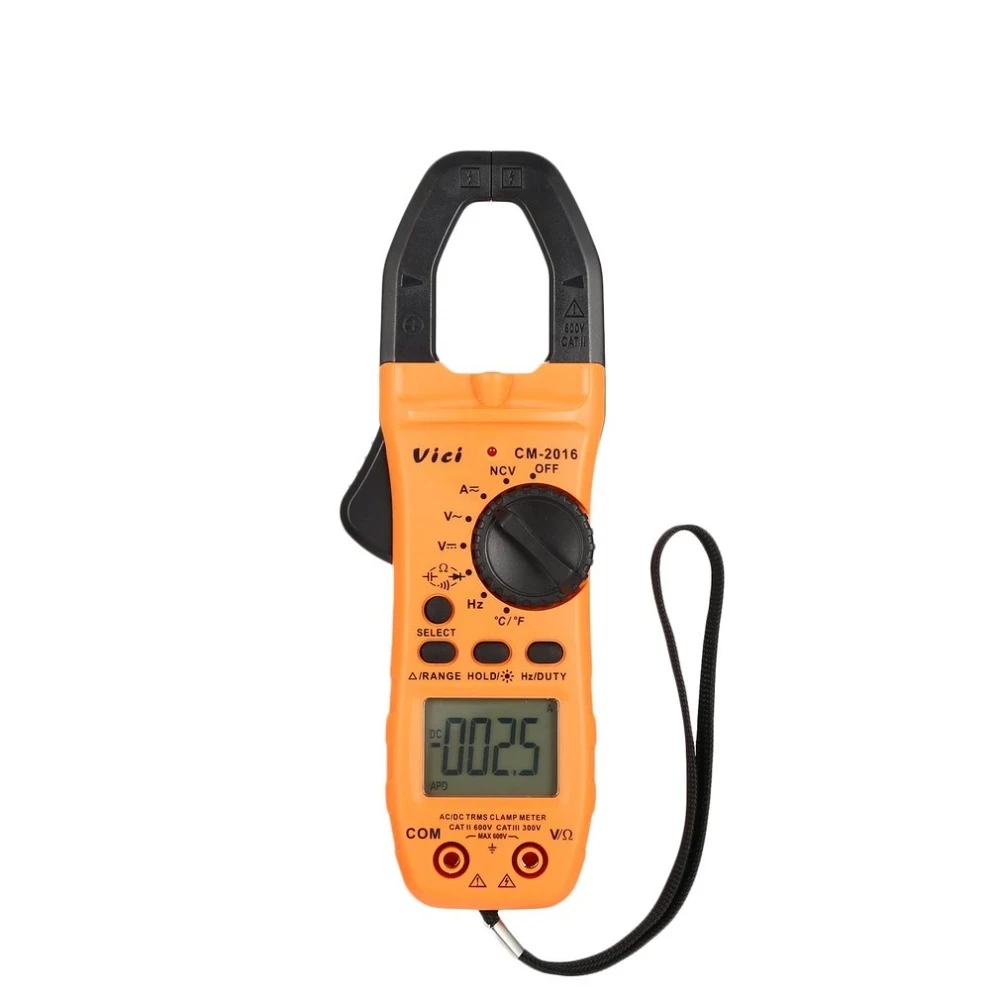

Vici 28mm Clamp Meter CM-2016

Product Not Available
Out of Stock
For Inquiry
Product Specification
  • DIY Supplies: ELECTRICAL
  • Tipe Display: Digital Display
  • Dimensions :185 x 82 x 25mm
  • Model Number :CM2016
  • AC Voltage: 600mV / 6V / 60V / 600V
  • DC Voltage: 600mV / 6V / 60V / 600V
  • Current AC: 600A
  • Current DC: 600A
  • Brand Name: VICI
  • Features: Multimeter
  • Color: orange & black
  • Display: 6000 counts
  • Battery type: 2 X 1.5V AAA battery( not included )
  • AC voltage range: 600mV/6V/60V/600V
  • AC voltage accuracy: ±(1.5%+5)/±(1.0%+5)
  • DC voltage range: 600mV/6V/60V/600V
  • DC voltage accuracy: ±(1.0%+5)/±(0.5%+5)
  • AC current accuracy: ±(2.0%+3)
  • Resistance range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
  • Resistance accuracy: ±(0.8%+5)/±(0.8%+3)/±(1.0%+25)
  • Capacitance range: 6nF/60nF/600nF/6μF/60μF/600μF/6000μF
  • Capacitance accuracy: ±(3.5%+20)/±(5%+10)
  • Frequency range: 20MHz
  • Frequency accuracy: ±(1.0%+3)
  • Temperature Range: -40~1000℃/0-1832℉
  • Temperature accuracy: ±(1%+5)/±(1.5%+15)
  • Sampling speed: 3 times per second
  • NCV test: yes
  • Duty ratio test: yes
  • Diode test: yes
  • Data hold: yes
  • LCD backlight: yes
  • Continuity buzzer: yes
  • Auto power off: yes
  • Low power indication: yes
  • Over-load indication: yes
  • Auto negative polarity indication: yes
  • Maximum size for opening the clamp heads:diameter 28mm
  • Item size: 185 x 82 x 25mm
  • Item weight: 180g
View More details

Delivery Options Available

  • 2-3 Days Normal Delivery
  • 24 Hours Express Delivery
Sold By
HT015
Warranty
NO
Easy Return
Available, T&C Apply

Description

  1. Clamp opens 28mm
  2. Portable design, easy use
  3. Clamp light, backlight display
  4. Large LCD display makes reading clear
  5. CE standard design, improves the safety of the test
  6. Full function protection, strong anti-interferential performance
  7. Duty cycle test, REL test, NCV, TRMS test, data hold, APO function
